GIDS: Road to the Future

[Sulman Badshah]

Road to the Future​

We believe that the future of defence lies in the vision for innovation, creativity and progression. As a Defence Conglomerate, we are committed to developing cutting-edge solutions that anticipate the needs of our clients and address the most pressing challenges of present arena.

We have a wide-ranging product portfolio for current & future defence requirements of our clients. The product portfolio comprises of an extensive range of systems in the domains of Air, Land, Sea, and NBC Defence & Security

At GIDS, we're proud to be the trend setters in industry, pushing the boundaries of what's possible and creating a safer, more secure future for us all. Below are few of the technologies and products which are currently under development phase and will soon become part of our portfolio:

Air & Air-Defence​

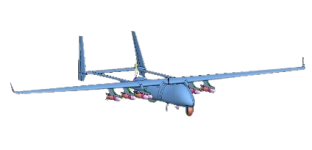

Shahpar-III (Group 4+ UCAV)​

• MTOW: 1650 kg
• 20 hours endurance (armed)
• Service Ceiling: 35,000 ft (armed)
• SATCOM (BLOS): 3000 km
• 06 wing hard points (400 kg – 530 kg)

FAAZ-2: Long Range (BVR) Air to Air Missile​

• Missile Range: 180 km
• Max Speed: Mach 3.5
• Seeker Type: Active RF / IIR
• Target Type: Aircrafts, UAVs, Helicopters

AZB – VI (84) (Range Extension Kit)​

• Warhead: Mk-84 (850-925 Kg)
• Range: ≤ 100 km
• GNSS system
• Accuracy: ≤ 10 CEP

BURQ-II (Air Launched Laser Guided Missile)​

• Effective Range: 2.5 to 12.0 km
• Weight: ≤ 50 kg
• Auto-pilot + GPS + Laser Seeker Gimbaled / Fixed Laser Seeker Guidance
• CEP < 1.5m
• UCAV & Helicopter platforms

ZUMR-IIID (Day & Night Surveillance & Targeting HD Payload)​

• Full High Definition (FHD) video
• Multi Imaging sensors (Vis/NIR, SWIR, MWIR)
• MISB compliant video-stream (metadata in KLV)
• Gimbal and Image Stabilization
• 24/7 Mission Capability with Enhanced Imagers
• Interfaces: INS, Moving Map interface
• Tracking, Geo-pointing, Geo-referencing
• GMTI
• UAVs, Aircrafts & Helicopters platforms

Land Systems​

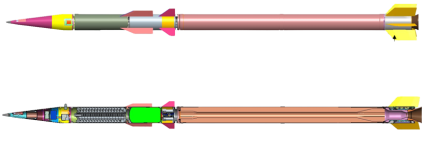

Fatah-II (Surface to Surface Guided Multiple Launch Rocket System (GMLRS))​

• Missile Range: ≤ 250 km
• Warhead Mass: 150 kg
• INS + GNSS Guidance
• CEP < 10m

​



[Sulman Badshah]

Multi-Function Air Defence Radar (MFADR) fully solid state, 3-D Active Phased Array Radar System​

• Automatic detection and tracking targets including helicopters, high-speed attack aircrafts, cruise missiles, and UAVs.
• integrated IFF and Built In Test Equipment (BITE)
• Omni Surveillance & Tracking
• Sector Surveillance & Tracking
• Multi target tracking
• Frequency: X Band

ZEERAK-III (Thermal Imaging System)​

• Sensors: IIR (640 x 512, 15µm, Cooled MWIRFPA) , CCD (HD, 1920 x 1080)
• Integrated Precision Positioning System
• Integrates long range cooled thermal imaging camera with a powerful daylight sensor, an Automatic Video Tracker, precise Azimuth/Elevation control and optionally a GPS, Digital Magnetic Compass.

GRAD (Low/ Medium Altitude Air Surveillance Radar)​

• Mobile S- band Active Phased Array, 3D Air Surveillance Radar for point and area defence of critical military and civilian assets
• Advanced ECCM features
• Detection Range: 100 Km @ 1m2
• Detection Height: upto 25,000 ft
• Moving Target Detection Speed: 25-2500 knots without any blind speed
• Built-in Test Equipment (BITE), IFF, North finding Sensor and Radios

E-SHORADS (FAAZ-SL) Air Defence System​

• Max Range: 20-25 km
• Max Altitude: 6-8 km
• Target: Aircraft, Helicopter, UAV, Cruise missile
• Truck / Jeep Mounted

Counter UAV System (Cognitive SDR based Technology)​

• ESM and C2 (Omni RF chain)
• Reconnaissance / interception in both passive and active mode
• Direction Finding of single / multiple drones at extended ranges
• RF & GNSS Jamming and Spoofing
• Detection Range: >75km (Extendable)
• RF Jamming Range: >50km (Extendable)
• RADAR AND EO/IR System is also incorporated
• Hard kill systems integration possible

Forward Observation Artillery Device (FOAD)​

• Hand held Night Vision System built on the impressive capabilities of cooled thermal imaging camera and
• Ideally suited for day and night perimeter security, border surveillance, law enforcement, search and rescue operations
• Integrated with GPS, Digital Magnetic Compass and a Laser Range Finder.

​



[Asfandyar Bhittani]

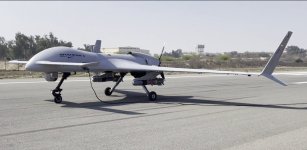

Any idea what happened to Shahpar III? It was supposed to have it's first flight by end of 2023 and available for export in 2024.

Half the year is gone, never even saw the maiden flight.



[Lulldapull]

This GIDS is by far our best defense company. It’s doing all the right things in a rapidly changing defense industry. If they go public, I’d be happy to buy their shares on PSX.



[MS Sandhu]

Any idea what happened to Shahpar III? It was supposed to have it's first flight by end of 2023 and available for export in 2024.

Half the year is gone, never even saw the maiden flight.

Acc. to informed members here,S-3 is still in initial stages of development.GIDS really jumped the gun in S-3 case.



[Asfandyar Bhittani]

Acc. to informed members here,S-3 is still in initial stages of development.GIDS really jumped the gun in S-3 case.

Alas, Was looking forward to it. Only serious indigenous drone under development that had the specs to replace future Ch-4, TB2 procurements.



[RAMPAGE]

Alas, Was looking forward to it. Only serious indigenous drone under development that had the specs to replace future Ch-4, TB2 procurements.

You do realise that Pakistan has yet to design and build an aircraft of such complexity without partnering with a major aviation company?

There is an excellent chance that it will never fly - at least without external collaboration.



[farooqbhai]

You do realise that Pakistan has yet to design and build an aircraft of such complexity without partnering with a major aviation company?

There is an excellent chance that it will never fly - at least without external collaboration.

Ah yes the PAC TD1 and Shahpar 2 MALE UAVs were all built by khalai mhaklooq

What is it with u guys



[farooqbhai]



[RAMPAGE]

Ah yes the PAC TD1 and Shahpar 2 MALE UAVs were all built by khalai mhaklooq

What is it with u guys

From what I remember, and I might be wrong, the first UAV was too heavy. At least it never made it to mass production. As for Shahper II, it is not in the same league as the proposed Shahpar III. However, I will amend my original statement for the sake of accuracy:

Pakistan has yet to design, build, and mass-produce an aircraft of such complexity without partnering with a major aviation company.



[Asfandyar Bhittani]

Any idea what happened to Shahpar III? It was supposed to have it's first flight by end of 2023 and available for export in 2024.

Half the year is gone, never even saw the maiden flight.

2023. Gone.
2024. Gone.
2025, almost gone.

Is Shahpar Pakistan's Tejas? Obsolete by the time of production and hence never mass produced. Told to upgrade to meet the current needs, by the time upgrade finishes, it's obsolete again and never goes into mass production, again. Rinse, repeat.



[RAMPAGE]

Still no Shahpar 3.



[White Privilege]

2023. Gone.
2024. Gone.
2025, almost gone.

Is Shahpar Pakistan's Tejas? Obsolete by the time of production and hence never mass produced. Told to upgrade to meet the current needs, by the time upgrade finishes, it's obsolete again and never goes into mass production, again. Rinse, repeat.

Some senior/informed member did term PAF drone acquisition as an equivalent of the Tejas fuckup...



[diaspora]

Some senior/informed member did term PAF drone acquisition as an equivalent of the Tejas fuckup...

There will always be a need for an S3 class drone for Pakistan. Afghanistan doesn't have any airforce or SAM batteries. Drones are ideal for strike roles across the border. If Afghanistan does ever get off the ground and develop anti-air capabilities the S3 will still serve as an excellent ISR platform to guard the international border. Costs less to fly than a JF17, can carry a decent strike package and can loiter for hours ensuring constant coverage of the border.



[SoulSpokesman]

@diaspora

You need all kinds of drones. From cheap ones which can be manufactured in lakhs to high end ones which can almost replicate fighter jets.

Regards
