GIDS Spider Anti-Drone System

The GIDS Spider Anti-Drone System is a cutting-edge, indigenous anti-drone solution developed by Global Industrial Defence Solutions (GIDS), a Pakistani defense company. Here's an overview:

Key Features
1. Multi-Sensor Detection: The Spider system employs a combination of radar, electro-optical/infrared (EO/IR) sensors, and acoustic sensors to detect and track drones.
2. Drone Classification: The system can classify detected drones based on their size, shape, and behavior.
3. Jamming and Spoofing: Spider can disrupt drone communications using jamming and spoofing techniques, rendering the drone ineffective or taking control of it.
4. Command and Control: Spider features a centralized command and control system, enabling operators to monitor and respond to drone threats in real-time.

Technical Specifications
1. Detection Range: Up to 10 km (6.2 miles)
2. Jamming/Spoofing Range: Up to 10 km (6.2 miles)
3. Response Time: Less than 20 seconds



[CSAW]

Some system like this is available Locally ....?



[ghazi52]

To view this content we will need your consent to set third party cookies.
For more detailed information, see our cookies page.

Accept third party cookies



[ghazi52]

Road to the Future​

We believe that the future of defence lies in the vision for innovation, creativity and progression. As a Defence Conglomerate, we are committed to developing cutting-edge solutions that anticipate the needs of our clients and address the most pressing challenges of present arena.

We have a wide-ranging product portfolio for current & future defence requirements of our clients. The product portfolio comprises of an extensive range of systems in the domains of Air, Land, Sea, and NBC Defence & Security

At GIDS, we're proud to be the trend setters in industry, pushing the boundaries of what's possible and creating a safer, more secure future for us all. Below are few of the technologies and products which are currently under development phase and will soon become part of our portfolio:

Air & Air-Defence​

Shahpar-III (Group 4+ UCAV)​

• MTOW: 1650 kg
• 20 hours endurance (armed)
• Service Ceiling: 35,000 ft (armed)
• SATCOM (BLOS): 3000 km
• 06 wing hard points (400 kg – 530 kg)

FAAZ-2: Long Range (BVR) Air to Air Missile​

• Missile Range: 180 km
• Max Speed: Mach 3.5
• Seeker Type: Active RF / IIR
• Target Type: Aircrafts, UAVs, Helicopters

AZB – VI (84) (Range Extension Kit)​

• Warhead: Mk-84 (850-925 Kg)
• Range: ≤ 100 km
• GNSS system
• Accuracy: ≤ 10 CEP

BURQ-II (Air Launched Laser Guided Missile)​

• Effective Range: 2.5 to 12.0 km
• Weight: ≤ 50 kg
• Auto-pilot + GPS + Laser Seeker Gimbaled / Fixed Laser Seeker Guidance
• CEP < 1.5m
• UCAV & Helicopter platforms

ZUMR-IIID (Day & Night Surveillance & Targeting HD Payload)​

• Full High Definition (FHD) video
• Multi Imaging sensors (Vis/NIR, SWIR, MWIR)
• MISB compliant video-stream (metadata in KLV)
• Gimbal and Image Stabilization
• 24/7 Mission Capability with Enhanced Imagers
• Interfaces: INS, Moving Map interface
• Tracking, Geo-pointing, Geo-referencing
• GMTI
• UAVs, Aircrafts & Helicopters platforms

GIDS - Road-to-Future

gids.com.pk



[ghazi52]

Land Systems​

Fatah-II (Surface to Surface Guided Multiple Launch Rocket System (GMLRS))​

• Missile Range: ≤ 250 km
• Warhead Mass: 150 kg
• INS + GNSS Guidance
• CEP < 10m

LOMADS (Air Defence System Fully Autonomous Self-Propelled Truck-Mounted System)​

• Range: 7km – 100 km
• Altitude: 30m – 20 km
• Simultaneous targets engage 12
• Max Target Speed: 0.1 – 3 Mach
• Max Missile Speed: 5 Mach
• CFCM, MFR, 6 MLMs with 4 missiles each

Multi-Function Air Defence Radar (MFADR) fully solid state, 3-D Active Phased Array Radar System​

• Automatic detection and tracking targets including helicopters, high-speed attack aircrafts, cruise missiles, and UAVs.
• integrated IFF and Built In Test Equipment (BITE)
• Omni Surveillance & Tracking
• Sector Surveillance & Tracking
• Multi target tracking
• Frequency: X Band

ZEERAK-III (Thermal Imaging System)​

• Sensors: IIR (640 x 512, 15µm, Cooled MWIRFPA) , CCD (HD, 1920 x 1080)
• Integrated Precision Positioning System
• Integrates long range cooled thermal imaging camera with a powerful daylight sensor, an Automatic Video Tracker, precise Azimuth/Elevation control and optionally a GPS, Digital Magnetic Compass.

GRAD (Low/ Medium Altitude Air Surveillance Radar)​

• Mobile S- band Active Phased Array, 3D Air Surveillance Radar for point and area defence of critical military and civilian assets
• Advanced ECCM features
• Detection Range: 100 Km @ 1m2
• Detection Height: upto 25,000 ft
• Moving Target Detection Speed: 25-2500 knots without any blind speed
• Built-in Test Equipment (BITE), IFF, North finding Sensor and Radios

GIDS - Road-to-Future

gids.com.pk



[ghazi52]

E-SHORADS (FAAZ-SL) Air Defence System​

• Max Range: 20-25 km
• Max Altitude: 6-8 km
• Target: Aircraft, Helicopter, UAV, Cruise missile
• Truck / Jeep Mounted

Counter UAV System (Cognitive SDR based Technology)​

• ESM and C2 (Omni RF chain)
• Reconnaissance / interception in both passive and active mode
• Direction Finding of single / multiple drones at extended ranges
• RF & GNSS Jamming and Spoofing
• Detection Range: >75km (Extendable)
• RF Jamming Range: >50km (Extendable)
• RADAR AND EO/IR System is also incorporated
• Hard kill systems integration possible

Forward Observation Artillery Device (FOAD)​

• Hand held Night Vision System built on the impressive capabilities of cooled thermal imaging camera and
• Ideally suited for day and night perimeter security, border surveillance, law enforcement, search and rescue operations
• Integrated with GPS, Digital Magnetic Compass and a Laser Range Finder.

GIDS - Road-to-Future

gids.com.pk



[ghazi52]

Naval Systems​

Torpedoes​

• Max Run Speed: 35-45 knots
• Operating Depth: 450m
• Range: 6-7 km
• Max Launching speed: 350 knots
• Target: underwater targets and surface vessels

​

UUV (Unmanned Underwater Vehicle)​

• Missions: intelligence gathering, mine-hunting and ship hull inspection
• Operating Depth: <300 m
• Range: 2 km
• Speed: ≤ 6 kts
• Endurance: 4 hours at 3 kts sped

​

RIBAT ESM System For Sub-Surface Platforms​

• Early warning of target and threat emitters
• Identify, classify, prioritize, and track Radar emitters
• Stable system performance in dense EM environment
• Provides neutral, friendly, unknown and hostile posture of the incoming emitters on the display with NATO symbols.
• 360° spatial coverage and wide operating frequency range
• Frequency Filtration function of GSM/3G/4G
• 100% Probability of Intercept
• Modular design for easy installation, maintenance and replacement

.............................................​

Automatic Deployment & Retrieval System (ADRS)​

• Automated Deployment and Retrieval System (ADRS) for towed arrays is vital to improve covertness and enhance operational capabilities of the submarine in varied scenarios. The overall deployment and retrieval time is greatly reduced along with reduced human resources required for the activity. Since Towed Array (TA) is the only long range sonar, its wartime availability shall also be made available using Automated Deployment and Retrieval System (ADRS) already developed by GIDS



[ghazi52]

Light Weight Combat Helm​

​

GIDS Light Weight Combat Helmet (LWCH) while protecting the user from bullets & fragments also provides the wearing comfort due to balanced weight distribution, which does not impede the performance of the soldier.

The construction of the inner suspension system ensures that a gap is always present between the head & the shell, which minimizes the effect of blunt trauma experienced by the soldier. It includes an adjustable headband and a comfortable chinstrap assembly.

The Helmet is relatively light weight and provides maximum comfort, mobility and protection in its class
​

Parameters	Technical specifications
Weight (grams)	Small: 1,450 / Medium: 1,500 / Large 1,550
Material	Ara in a Thermoset Matrix
Protection Level	NIJ Level II Std 0106.01 (9mm, FMJ) V50 (17 gr FSP;500m/sec)
Colour	Any Shade as Per User Requirement
Size	Small, Medium & Large
Design	PASGT
Suspension Attachment	Bolted
Magnetic Effect	None
Compatibility	Compatible with all Communication & Vision Devices



[ghazi52]



[ghazi52]

Harbah is a Navy Ship Launched Subsonic Cruise Missile system able to target Enemy Ships and Land based targets within an accuracy of >=10m radius. It employs cutting edge navigation technologies such as Inertial Navigation System (INS) with GPS/GLONASS making it exceptionally accurate weapon system to precisely engage the desired targets. It is capable of engaging land based installations as well as both small and large ships.

Harbah has a modular design, allowing a wide variety of warhead, guidance, and range capabilities. Harbah is all weather capable and flies at lower altitude which makes it impossible for countermeasures to come into play, making it one of the deadliest systems.

Salient Features​

• Medium Range
• Highly Precise Navigation
• All weather Operation
• High Hit Probability
• Smart Size and Weight
• High Survivability
• Easier Ground Handling

Types of Payload / Warheads​

• Fragmentation Warhead
• Anti-ship Warhead

Guidance​

• Inertial Navigation System
• DSMAC Camera
• Radar Altimeter
• Imaging Infrared Seeker
• Radar Seeker

​

Parameters	Technical specifications
Range	>=280Km
Speed	0.6 — 0.8 (Mach)
Gross Weight	1350 Kg
Diameter	0.5 m
Length	6.8 m
Fuel	Liquid Aviation Fuel JP-8
Seekers	Radar & IIR
Single shot hit Probability	>90%
After Sales Service	Yes(Life Support Program)
Survivability Features	Multiple way points, Maneuverability, Speed



[ghazi52]

​

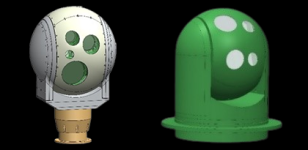

Stabilized Optical Tracker, scanner and surveillance system has the ability to detect / track aerial / surface targets like UAVs, helicopters, aircrafts, ground vehicles and ships. Detection of multi targets within the field of view of the thermal imager is carried out as a first step. Subsequently, the system locks on to a primary target selected by the operator.

Stabilization​

Stabilization makes it possible to install SOT on ships, boats and vehicles like APC/ tank. In order to achieve stabilization, a dedicated six degree of freedom inertial sensor has been incorporated in the system.

Surveillance​

The operator can search for possible targets by steering SOT using joystick. Once a target is located, operator can command the system to start its tracking and initiate its trajectory estimation.

Detection / Tracking​

A state of the art image processing module performs target detection and tracking and also generates panoramic views in its respective operation modes.

Scan mode​

When SOT-3S-E operates in scan mode, it has the ability to generate panoramic views. The philosophy of panoramic views is based on physical scanning of complete horizon by the thermal imager. The streaming video frames from the thermal imager during the scan are then stitched together to generate a 360° image
.

Operator Console​

SOT3S-E is remotely operated by the operator console, which may be installed inside the ops room, of a ship or a vehicle cabin etc. it includes a touch screen display, and joystick controller. The operation of the system is user friendly.

Fire Control Computer (FCC)​

SOT-3S-E can be interfaced with a variety of weapons like SAMs, anti-aircraft guns etc. For this purpose, customized FCC can be provided for a particular weapon system. This sensor weapon configuration provides high firing accuracy.

Components of SOT​

• Thermal Imager (TI)
• Color Camera (CC)
• Laser Range Finder (LRF)
• Global Positioning System (GPS)
• Inertial Sensor
• Operator Console
• 2-axes turret

Salient Features​

• High resolution cooled Thermal Imager
• Eye-safe Laser Range Finder
• State of the art Tracking/ detection/ scanning algorithms
• High precision turret control
• LOS Stabilization
• Day/ night operation
• Modular Design
• Friendly Graphical User Interface (GUI)
• Capable of integration with other weapons and sensors
