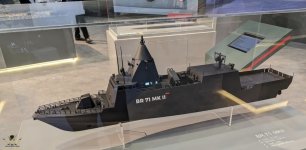

BR71 MK (Edge) combat ship
Abu Dhabi Ship Building Company introduces the powerful and advanced 71-metre MK II combat ship, a specialized upgrade to the Baynunah ship.
Armed with eight vertical cells behind the cannon with VL Mica surface-to-air missiles
And eight anti-ship missiles Exocet Block III
Total length: 70.30 m
Width (BOA): 11 metres
Displacement with full load: 895 tons
Submersible depth: approximately 0.52 m
Crew: 50 people
Endurance: 15 days
Maximum speed limit (at half load): 30 knots
Range (at 12 knots): 2,500 nautical miles
Propulsion system: 4 diesel engines in two engine rooms and 2 water jet pumps
2 steering motors
2 propulsion engines
Abu Dhabi Ship Building Company introduces the powerful and advanced 71-metre MK II combat ship, a specialized upgrade to the Baynunah ship.
Armed with eight vertical cells behind the cannon with VL Mica surface-to-air missiles
And eight anti-ship missiles Exocet Block III
Total length: 70.30 m
Width (BOA): 11 metres
Displacement with full load: 895 tons
Submersible depth: approximately 0.52 m
Crew: 50 people
Endurance: 15 days
Maximum speed limit (at half load): 30 knots
Range (at 12 knots): 2,500 nautical miles
Propulsion system: 4 diesel engines in two engine rooms and 2 water jet pumps
2 steering motors
2 propulsion engines
